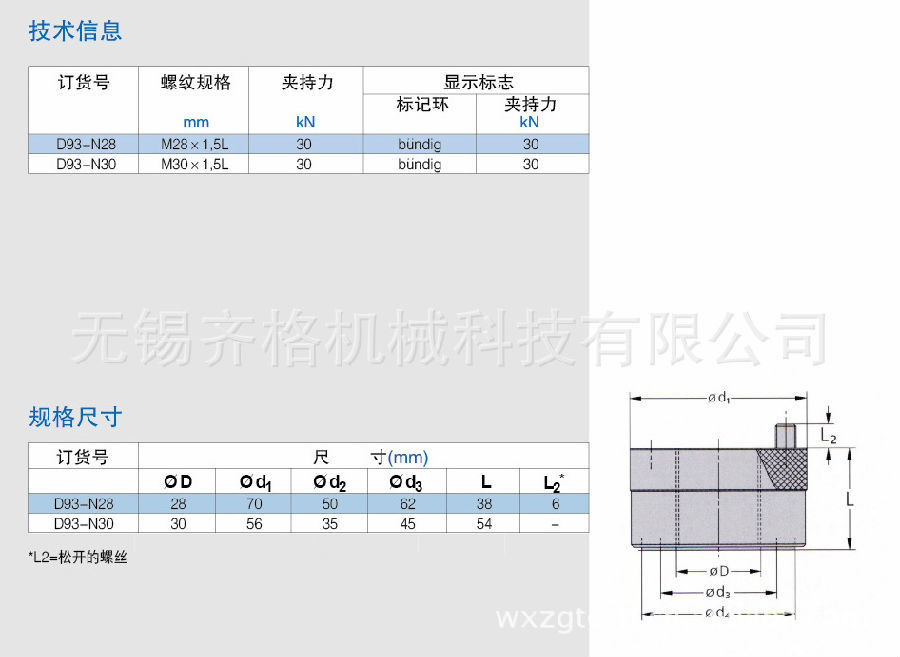

SCHrem Clamping Element D93-N28/D93-N30

SCHREM施雷姆夹持元件

Used for clamping worm wheel on gear grinding machine.
This hydraulic clamping element can easily replace the traditional mechanical nut.
Manually tighten the worm wheel with the hydraulic clamping nut, clamp it with the set pure axial pressure, and adjust and control it through the clamping force display device. The clamping force is generated by the built-in hydraulic system by turning the screw. The lengthening wrench, fixed end of main shaft and radial force arising from this work will belong to the past.
When placing and loosening the clamping nut in the inner cavity, a special wrench Nr.D93-N28.20 is required, which can be used only by inserting it into two holes on the end face.
D93-N28 for REISHAUER machine tool
D93-N30 for GLEASON/OKAMOTO machine tool

SCHrem clamping element DA92 with clamping force display
