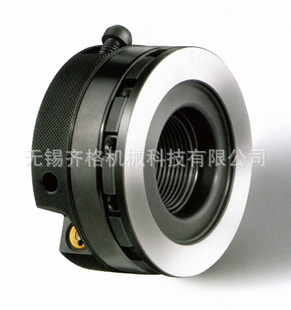

SCHREM Schrem clamping element DAKK92 hydraulic return device

SCHREM 施雷姆夹持元件DAKK92

The hydraulic clamping element can provide a constant, controllable, strong and axial clamping force with a floating clamping end face.
A flange ring is inserted between the clamping element and the hob cutter bar to avoid being clamped μ Level. At the same time, with the help of the built-in spring, the flange ring can return to the zero position or the starting position of the element in the relaxed state through the built-in hydraulic return device of the clamping element.
The wedge block structure installed on the ring piston can optimize the circular run-out accuracy of the hob, and the interaction between the flange ring and the clamping element can improve the buckling stiffness of the whole mechanism.
effect:
The shaft shall be installed vertically as far as possible
Ideal axial clamping force and corresponding clamping force display device
Circular run-out detection
The hob can be installed and adjusted with the help of wedge block until the ideal circular run-out accuracy is obtained
The radially arranged wedge blocks remain in the original position
